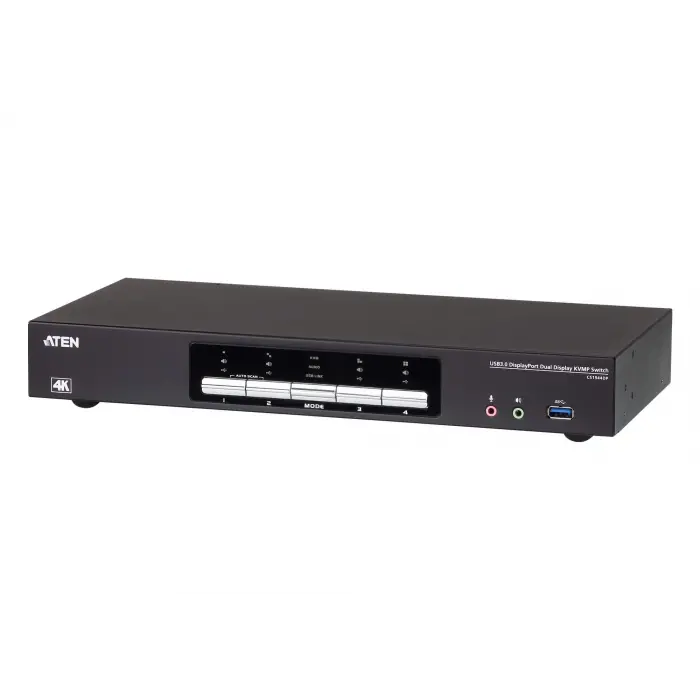

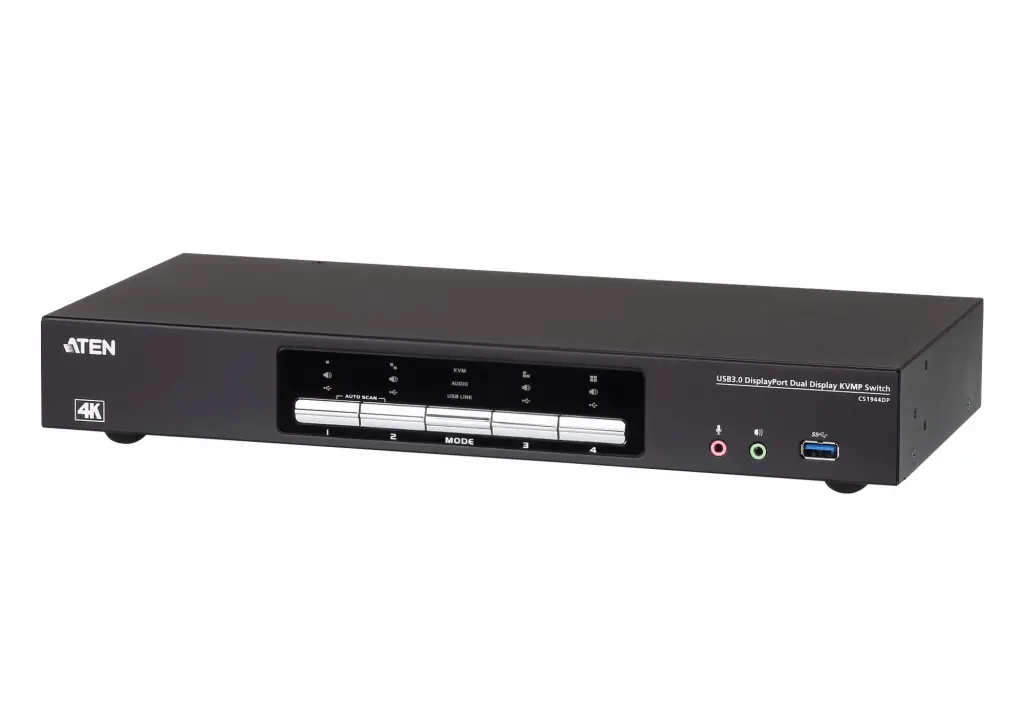

4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch

4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch

• One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
• Supports Quad Display by connecting two Dual Display KVM switches
• Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
• Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
• 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Supports DisplayPort Dual-Mode technology (DP++)1
• Supports MST(Multi-Stream Transport)2
• Supports Console keyboard emulation / bypass feature
• Supports Console mouse emulation / bypass feature
• Independent switching of KVM, USB, and Audio
• Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
• DisplayPort 1.2 compliant; HDCP compliant3
• Supports HD audio4
• Power on detection
• Firmware upgradable

  Note:
  1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source s DP++ compatibility.
  2. MST(Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
  3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue
  4. HD audio through DisplayPort cannot be switched independently

• 1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
• 8x DisplayPort 1.2 Cables
• 4x USB 3.0 Cables
• 8x Audio Cables
• 1x Power Adapter
• 1x User Instructions
