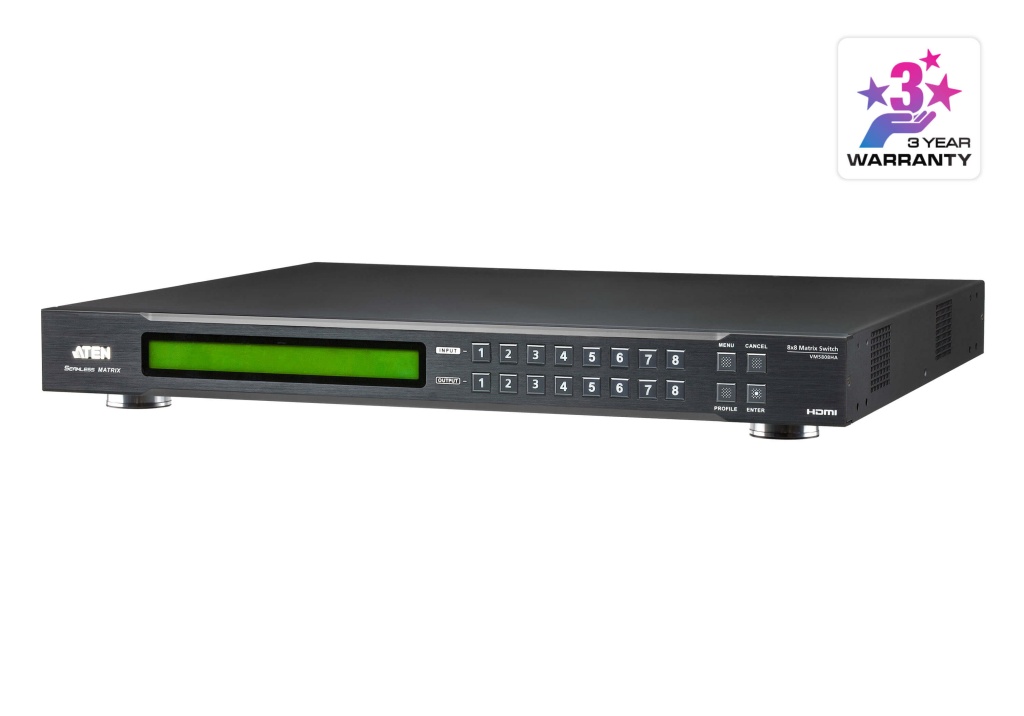

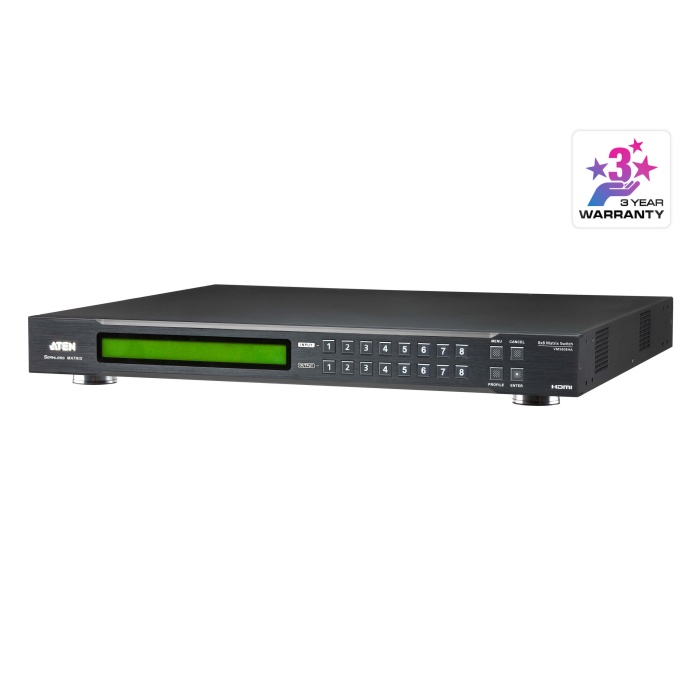

Name: 8 x 8 HDMI Matrix Switch with Scaler
Brand: Aten
SKU: bml_ATEN-VM5808HA
Availability: InStock

8 x 8 HDMI Matrix Switch with Scaler

Marka: Aten

Kategori: Switch & Hub

Stok: 2

0,00 TL

Hızlı Gönderi

Güvenli Alışveriş

İade ve Değişim

Routes any of 8 HDMI sources to any of 8 HDMI displays
Local HDMI output – enables previewing of up to 8 video sources in a multi-view window
Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System
Device status can be viewed and controlled via ATEN Video Matrix Control App
Video Wall functionality via intuitive web GUI* allows for customization of up to 16 layouts for any type of video walls
Built-in scaler automatically converts input resolutions for optimal appearance on the display
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
ATEN Seamless Switch technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Audio enabled; HDMI audio can be extracted to stereo audio
HDMI (3D, Deep color); HDCP 1.4
Supports Dolby True HD and DTS HD Master audio
Supports Consumer Electronics Control (CEC)
ESD protection for HDMI
Firmware upgradeable
Rack mountable (1U design)

*Note:
1. If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switching is a must.
2. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.

Input Resolutions	1080P HDMI	720 x 480p 60 Hz (4:3) / (16:9)
	640 x 480 @ 60/72/75 Hz	1280 x 720p 60 Hz (16:9)
	800 x 600 @ 56/60/72/75 Hz	1920 x 1080i 60 Hz (16:9)
	1024 x 768 @ 60/70/75 Hz	1920 x 1080p 60 Hz (16:9)
	1280 x 800 @ 60 Hz	720 x 576p 50 Hz (4:3) / (16:9)
	1280 x 1024 @ 60/75 Hz	1280x720p 50Hz (16:9)
	1366 x 768 @ 60 Hz	1920 x 1080i 50 Hz (16:9)
	1400 x 1050 @ 60 Hz
	1440 x 900 @ 60 Hz
	1600 x 1200 @ 60 Hz
	1680 x 1050 @ 60 Hz
	1920 x 1080 @ 60 Hz
	1920 x 1200 @ 60 Hz (Reduced Blanking)
	640 x 480p 60 Hz (4:3)

Video Input
Interfaces	8 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5.0 m
Video Output
Interfaces	8 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m
Audio
Output	1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet	1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A
Power Consumption	AC110V:58.1W:272BTU/h AC220V:56.6W:265BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	5.54 kg ( 12.2 lb )
Dimensions (L x W x H)	43.24 x 37.82 x 4.40 cm (17.02 x 14.89 x 1.73 in.)
Carton Lot	1 pc
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
