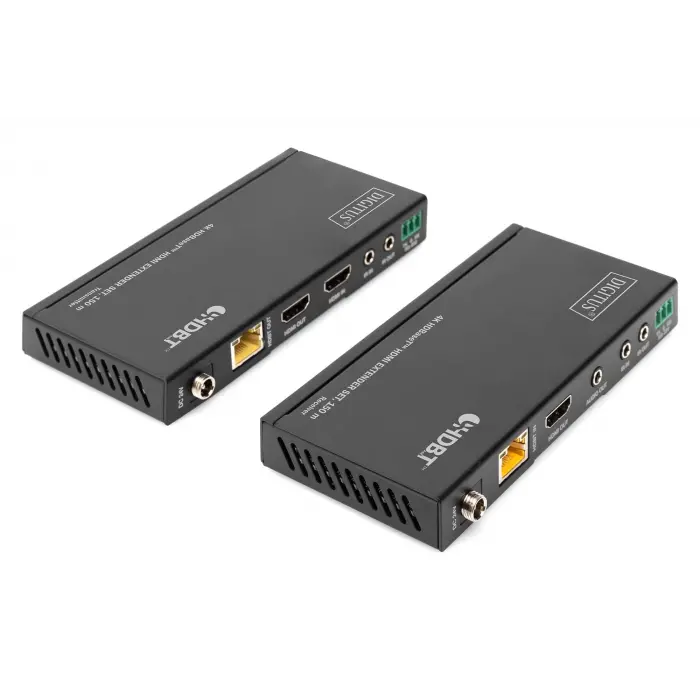

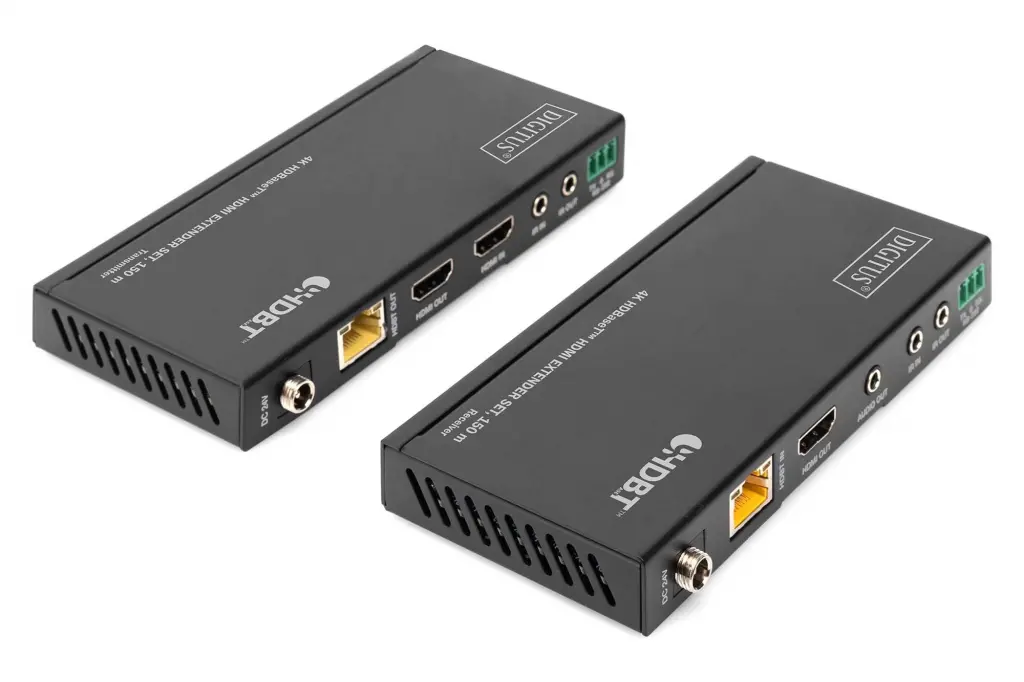

DIGITUS 4K HDBaseT™ HDMI Extender Set, 150 m 4K/60Hz, 18 Gbps, YUV 4:4:4, HDR

DIGITUS 4K HDBaseT™ HDMI Extender Set, 150 m 4K/60Hz, 18 Gbps, YUV 4:4:4, HDR

• Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
• Supports 4K2K/60Hz (4:4:4)
• Maximum transmission distance (UHD 4K2K): 120 m
• Maximum transmission distance (Full HD 1080p): 150 m
• Video bandwidth: 18 Gbps
• Bi-directional IR transmission
• CEC pass-through
• Transmitter unit connections:
• 1x HDMI input (4K/60Hz) - Connection signal source
• 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable
• 1x HDMI loop-out / output – Connection of local monitor (source device)
• 1x IR input to receive remote control signals
• 1x IR output for control of the source device
• 1x RS232 (3-pin Phoenix) for RS232 command transmission
• 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
• 1x Micro USB input - Service/remote maintenance update
• Receiver unit connections:
• 1x HDMI output (4K/60Hz) - Connection output device
• 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable
• 1x RS232 (3-pin Phoenix) for RS232 command transmission
• 1x 3.5 mm stereo audio output
• 1x IR input to receive remote control signals
• 1x IR output for control of the output display
• 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
• 1x Micro USB input - Service/remote maintenance update
• ESD protection
• Suitable for wall mounting
• Operating temperature: 0-40°
• Power consumption: approx. 9.36 W
• Housing: Metal
• Dimensions (1 unit): L 14 x W 6.5 x H 1.8 cm
• Weight: Transmitter 160 g, Receiver 155 g
• Color: Black

Attributes

• KVM: no
• PoE (Power over Ethernet): no

Package content

• 1x Transmitter unit
• 1x Receiver unit
• 1x IR transmission cable (1.5 m)
• 1x IR receiver cable (1.5 m)
• 1x Power adapter (DC 24V/1A, 1.45 m)
• 2x 3-pin Phoenix connector
• 4x Mounting plate
• 1x User manual
