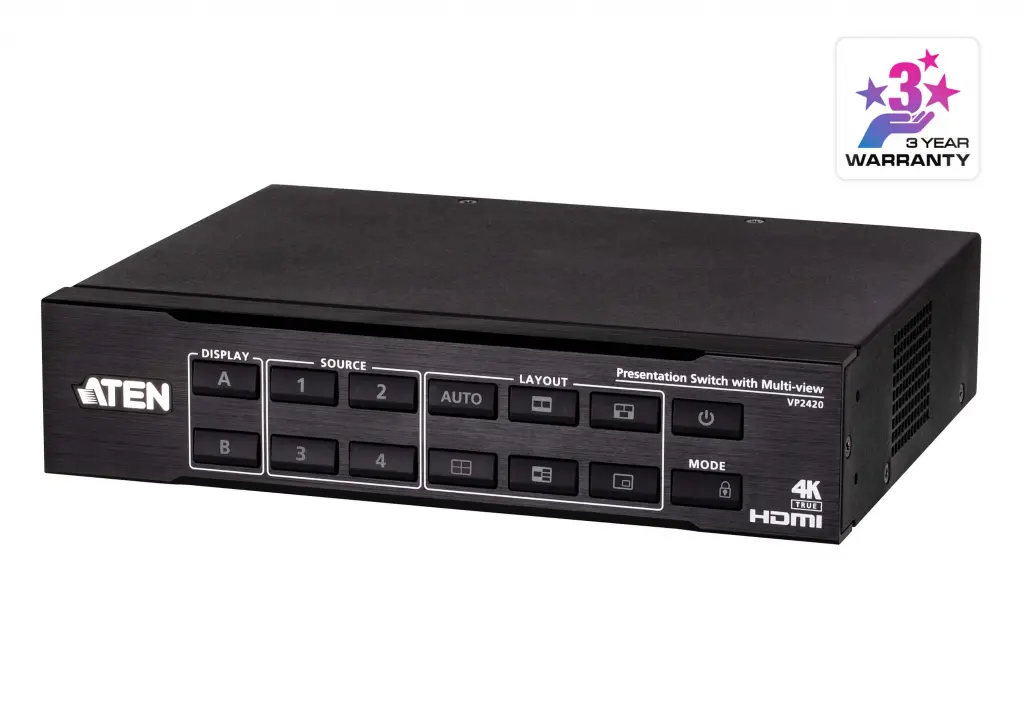

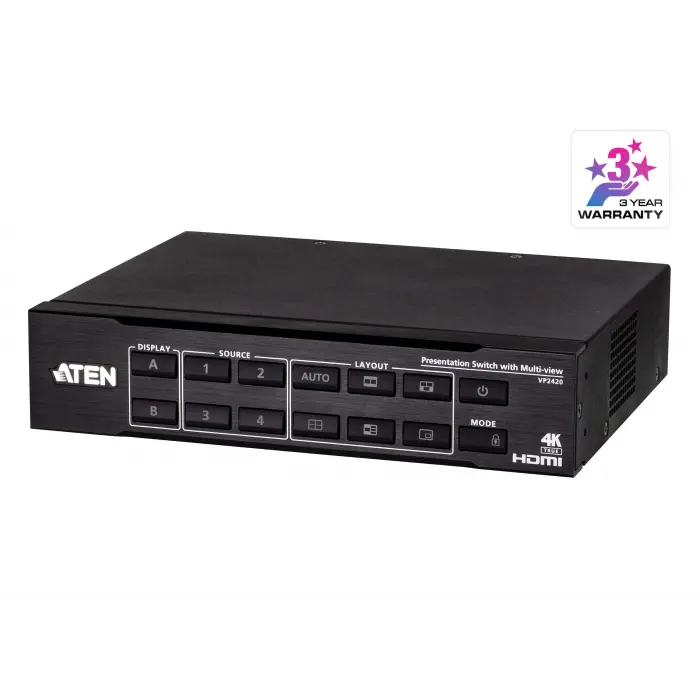

The VP2420 is a presentation switch featuring 4 HDMI inputs and 2 HDMI outputs and is capable of displaying video content in full screen, PiP, PbP, triple/quad multi-view. With display mode (Matrix/Mirror) and layout mode (Auto/Manual) selectable and its capability of seamless switching* among multiple sources, the VP2420 delivers a dynamic viewing experience in any conference settings. In addition to the support for 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4), a True 4K scaler is also built in the device to ensure crisp and detailed visual quality. Thanks to the audio embedding and de-embedding functionalities, users can adapt suitable audio/video combinations based on various environments.

Designed with flexibility in mind, the VP2420 offers versatile control options including front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app, allowing multimedia signals to be easily managed and incorporated into a collaborative event. Up to 4 VP2420 can be cascaded to display up to 16 HDMI signals at once on a single screen, expanding video source quantity. Rack-mounting is supported for flexible installation. With a set of features coming in a compact, all-metal casing, which enhances durability, the VP2420 serves as a perfect solution for smooth presentation flow and seamless transition in any education or commercial conferencing applications.

*Note: The is only available on Display A and applicable to single port switching. Multiview layout switching is inapplicable.

• Seamless AV Matrix Switching
  • Supports 4 × HDMI inputs and 2 × HDMI outputs
  • Supports Multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, and Auto/Manual layout modes
  • Supports audio embedding and de-embedding
  • Seamless switching* at near-zero-second speed
  • Auto switching – automatically detects and switches to the latest active source connection

• Visually Stunning True 4K Outputs
  • Supports up to 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4) and 4K HDR
  • Built-in True 4K scaler – supports video upscaling to True 4K
  • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant

• The Ultimate Flexibility in Streamlining Operation
  • Multiple control options – front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app
  • Consumer Electronics Control (CEC)
  • Up to 4 × VP2420 cascadable – displays up to 16 signals on one screen simultaneously
  • Long distance transmission – up to 5m via a High Speed HDMI cable
  • Supports stand-by mode for power saving and fast waking up
  • Rack-mountable
  • All-metal casing enhances durability

    * Note: The is only available on Display A and applicable to single port switching. Multiview layout switching is inapplicable.

Display A (Scaler Mode)
Output Resolutions640x480 @ 60 Hz

720x576 @50 Hz

1280x720 @ 50/60 Hz

1920x1080 @ 30/50/60 Hz

3840x2160 @ 24/25/30/50/60 Hz YUV422 12BIT

3840x2160 @ 24/25/30/50/60 Hz

3840x2160 @ 50/60 Hz YUV420

3840x2160 @ 60 Hz YUV444

4096x2160 @ 24/25/30/50/60 Hz YUV422 12BIT

4096x2160 @ 24/25/30/50/60 Hz

4096x2160 @ 50/60 Hz YUV420

Display B (Bypass Mode)
Input / Output Resolutions640x480 @ 60/72/75 Hz1080p60 (Native)

800x600 @ 56/60/72/75 Hz480p60 (4:3) / (16:9)

1024x768 @ 60/70/75 Hz576p50 (4:3) / (16:9)

1280x800 @ 60 Hz640x480

1280x1024 @ 60/75 Hz720p50/60

1400x1050 @ 60 Hz1080p24/25/30/50

1440x900 @ 60 Hz1080i50/60

1600x1200 @ 60 Hz3840x2160p24/25/30/50/60

1680x1050 @ 60 Hz4096x2160p24/25/30/50/60

1920x1080 @ 60/120 Hz3840x2160p50/60 (4:2:0)

1920x1200 @ 60 Hz CVT(RB) / (RB)4096x2160p50/60 (4:2:0)

Video Input

Interfaces4 x HDMI Type A female (Black)

Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m

Video Output

Interfaces2 x HDMI Type A female (Black)

Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m

Video

Max. ResolutionHDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

ComplianceHDMI (3D, Deep Color, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)

Audio

InputStereo Audio (HDMI): 1 x mini stereo Jack female (Green)

OutputLine Out (Unbalanced): 1 x Captive Screw Connector, 3-pole (PCM 2CH)
Digital Audio: 1 x Coaxial (LPCM 2CH, Dolby Digital, DTS)

Control

RS-2321x DB-9 Female (Black); VP device control & configuration

IR1 x Mini Stereo Jack Female (Black)

Ethernet1 x RJ-45 Female (Silver)

Switches

Power1 x Pushbutton (LED: Green / Orange)

Video Input Port Selection4 x Pushbutton (LED: Green)

Video Output Port Selection2 x Pushbutton (LED: Orange)

Multi-View ModeLayout: 6 x Pushbutton
(Full Screen, PiP, PbP, Triple/ Quad multi-view)

SelectionMute: 1 x Pushbutton
Mode / Unlock: 1 x Pushbutton

EDID SettingsEDID Mode: ATEN Default / Display A / Remix

Connectors

Power1 x DC Jack (Black)

Power ConsumptionDC12V:17.1W:80BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature0-40°C

Storage Temperature-20 - 60°C

Humidity0 - 80% RH, Non-Condensing

Physical Properties

HousingMetal

Weight1.08 kg ( 2.38 lb )

Dimensions (L x W x H)20.00 x 16.05 x 4.40 cm
(7.87 x 6.32 x 1.73 in.)

Carton Lot3 pcs

NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
