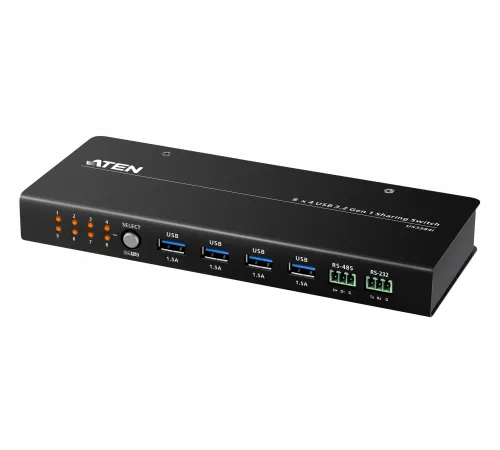

8 x 4 USB 3.2 Gen 1 Sharing Switch - bml_bml

tdr6918db112c993

Ürün Kodu

bml_bml_ATEN-US3384I

16.884,88TL

Vergiler Hariç: 14.070,74TL

🎁 Bu üründe ÜCRETSİZ KARGO! 'Ekstra masraf yok, sürpriz ücret yok. Siparişini ver, kapına kadar güvenle gelsin!

Allows sharing of up to 4 USB 3.2 devices among 8 PCs
Bandwidth speed of 5 Gbps and backward compatibility with USB 2.0/1.1 to ensure swift data transmission
Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector¹
Power on Detection
– Automatically switches the PC focus to the last plugged-in/powered-on host device
– Configurable priority port preference – allows the focus to switch to a secondary USB host when the primary one is lost
Front panel port status LEDs – indicate which one of the PCs connected to the US3384i is having the focus at a glance
Supports USB BC 1.2 to ensure sufficient power for downstream USB devices
Overvoltage protection circuit – extends device lifespan and minimizes risks of electrical hazards/explosions led by voltage spikes surpassing safe operating limits
Supports DC 9 – 24V power input through terminal block²
Plug-and-play on Windows and macOS operating systems – no drivers are needed
Hot-pluggable – users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch
Wall-mountable case constructed with premium metal for enhanced durability

Note:
1. The remote port selector is sold separately, please contact your ATEN dealer for product information.
2. Supports either of the following power supplies:
(1) DC terminal block
(2) DC power jack (The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.)

Computer Connections	8
Connectors
Computer	8 x USB 3.2 Gen 1 Type-B Female (Blue)
Device	4 x USB 3.2 Gen 1 Type-A Female (Blue)
Serial	2 x 3-pin Terminal Block (Green)
Power	1 x 2-pin 9-24V Terminal Block (Green)
Power (Optional)	1 x 12V DC Jack Female (Black)
Power Consumption	DC12V:0.52W:130BTU/h DC24V:0.53W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Mode	Terminal Block / DC Jack Power Adapter* *The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.
Port Selection	Pushbutton / Remote Port Selector* / Serial Command *The remote port selector (2XRT-0016G-1) is sold separately, please contact your ATEN dealer for product information.
LEDs
Selected	8 (Orange)
Cable Length
USB Cable	8 x USB 3.2 Gen 1 Type-A to Type-B Cables 1.2m
Environmental
Humidity	0-80% RH, Non-condensing
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Physical Properties
Housing	Metal
Weight	0.50 kg ( 1.1 lb )
Dimensions (L x W x H)	20.00 x 8.06 x 2.50 cm (7.87 x 3.17 x 0.98 in.)
